Description

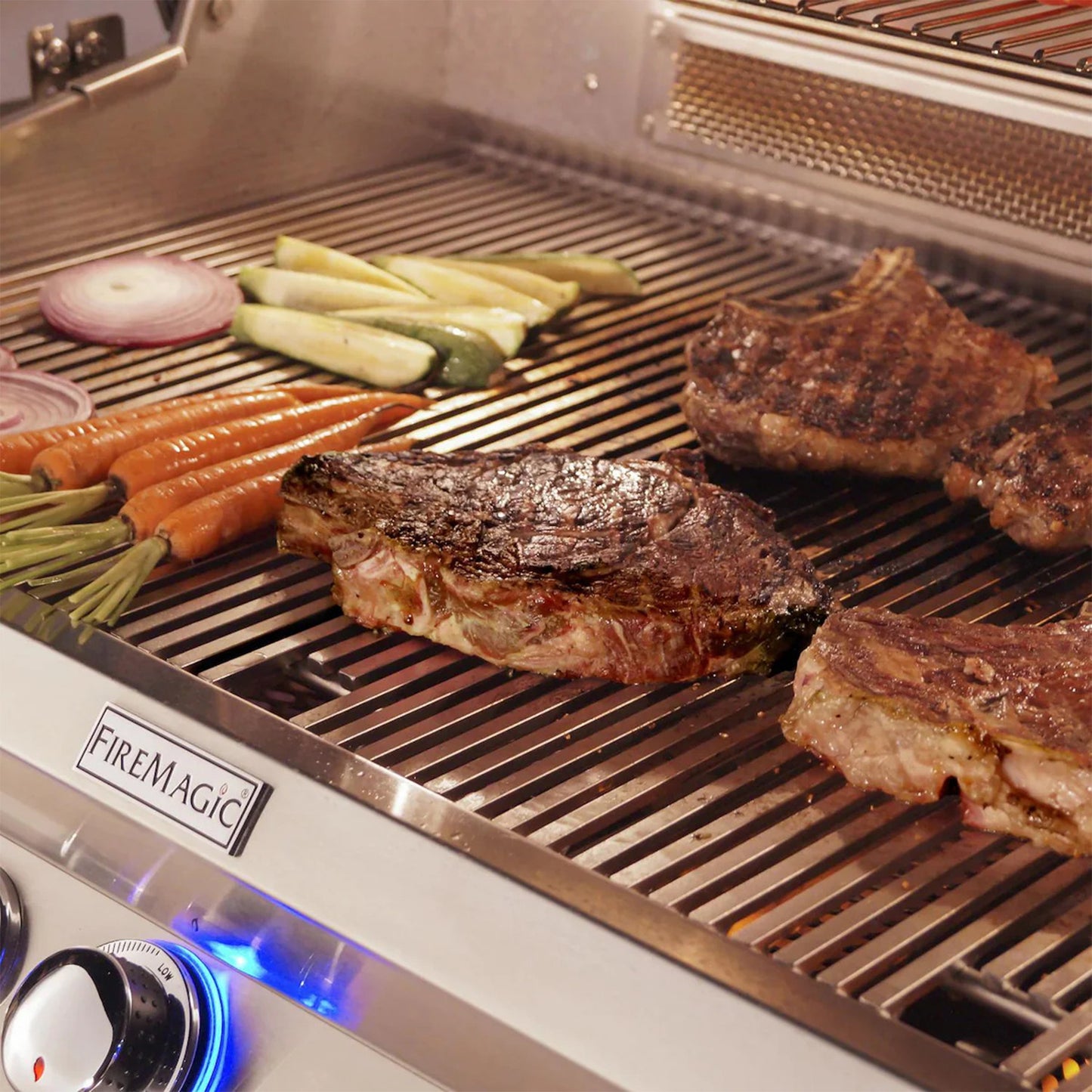

Fire Magic Echelon Diamond is a superior grill combining the ultimate performance, beauty and innovation. With sleek lines, a unique contoured face and state-of-the-art features such as hot surface ignition, blue backlit knobs, a dedicated wood chip smoker drawer and an optional Magic View window, Echelon Diamond defines luxury in grilling.
2020 Improvements
- Zone Flavor Grids
- Heavy Duty Diamond Sear Cooking Grids
- Heavy Gauge Stainless Steel Adjustable Warming Rack
- Integral Installation Raised Hanger
- Seamless Double Wall 90 degree Hood with Feather-Lite Easy Lift Lid
- Larger Drip Tray with Roller Ball Bearings and Disposable Foil Tray Liners
Standard Features
- Analog Thermometer in Lid measuring up to 1000℉
- Cast Stainless Steel "E" Burners
- 120 Volt Plug-in Electrical supply with 12 Volt Transformer
- Polished, Back-Lit Control Knobs
- Push-to-Light Hot Surface Electric Ignition System with Flash Tubes
- 12" Deep Firebox
- Pre-assembled 1/2" x 36" Stainless Steel Gas Flex Connector
- Stainless Steel Valve Manifolds
- Convertible Regulator with Orifices (Nat or LP)
- Cooking Grid Lifter
- Angled Halogen 12 Volt Internal Oven Lamps
- Contoured Control Panel with bright polished trim
- Master Power Switch
- Charcoal/Smoker Basket included
- Custom Personalized Name Plate
*All "8L1N(P)" and "8LAN(P)"models include an Infrared Burner on the Left Side*
Specifications
- Shipping weight: 275lbs
-
Cut Out Dimensions 37"W x 23 1/2"D x 11 1/2"H Primary Cooking Surface 792 sq. inches (36" x 22") Primary Burner BTU's 90,000 Backburner BTU's 13,000
